The sheet, adopting the aramid fiber and high-quality sepiolite as the main reinforcing materials, is compressed with natural rubber, styrene-butadiene rubber and oil-proof rubber as adhesives. Application : it is applied as sealing gasket material at equipment and pipelines flange joints of media such as high-temperature and high-pressure water, saturated steam, overhating steam, coal gas, inert gas, etc. It’s also used as sealing gasket material at flange joints of refining equipment and destillation pipelines as well as at joints of automobile diesels and oil pipelines.
Asbestos jointing sheet is refined by high-quality asbestos fibers, styrene-butadiene rubber, filler, and coloring agent. With high cost-performance, the gasket material is widely used in industrial circles. Corresponding models can be selected according to working conditions. Application : it is applied as sealing gasket material at flange joints of pipelines with media such as water, steam, air, ammonia-soda liquor, etc.

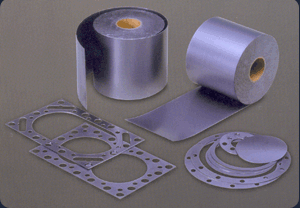

It is made from expanded graphite sheet reinforced by inserted metal plate. It has good compressibility and reslience, excellent sealing property for microscopic surface irregularities and long working life. It is mainly used for making cylinder gaskets of engines and punching into all kinds of sealing gaskets.
Dimension :
Length : 1000mm, 1500mm, 2000mm
Width : 1000mm, 1500mm, 2000mm
Thickness : 1.0 ~ 4.0mm
Special density, thickness or insert material are available on request
Pure graphite sheets/ rolls are made from natural high-purity flake graphite through chemical and high
temperature treatment, molding or rolling without any adhesives. With long life and low maintenance costs, it is still of excellent sealing performance in the harsh working conditions.
Product Applications :
It can be used as semi-finished products for manufacturing graphite packing rings and various type gaskets. Widely used in chemical, automobile, pump and valve industries.
